1935 -1939 Shock Arm lengths

[jkflathead]

Does anyone know the shock arm lengths, front and rear for 1935 -1939 Fords? Thank you. John

[marko39]

39s are 4"

[DavidG]

No period Ford shock arm is only 4" long; perhaps you are thinking of the links between the end of the arm and the axle.

[marko39]

Originally Posted by DavidG

No period Ford shock arm is only 4" long; perhaps you are thinking of the links between the end of the arm and the axle.

My mistake, the arms on my 39 measure 7 3/8 front and 9 1/4 rear. This is overall length.

[Kube]

Originally Posted by marko39

39s are 4"

No, the shock links are NOT 4" on a '39. They are 3" at all four corners.
The 4" links were first placed on '40 Fords, front only and then only the vehicles equipped with the stabilizer bar.

[Terry,OH]

Sponsored Links (Register now to hide all advertisements)

The 35 and 36 front shock arms are pressed onto the shocks The rear shocks have removable bolted on arms that are about 8-1/4" c/l to c/l

[v8fordman]

Originally Posted by Kube

No, the shock links are NOT 4" on a '39. They are 3" at all four corners.
The 4" links were first placed on '40 Fords, front only and then only the vehicles equipped with the stabilizer bar.

With respect, I disagree with your statement. 4” shock links were introduced on the 1937 Ford (NOT the ‘40) for the front only. The 4” link carries part number 78-18055 A1 or A2. This was carried through 1939 on the front as well, with the only possible change being an early ‘39 introduction of the Marsden nut for attaching a changed shorter stud on the link versus the 5/16 fine thread and a lock washer attaching hardware on the earlier longer link. This is all documented in both the ‘37 and ‘38/9 books.

If you believe the Green Book, the “Shock Absorber Link Chart” on page 325 indicates 3” shock links (48-18055) on both the front and rear (NOT a 4”) on 1940 Fords with a 4” link being used on 60hp cars.

[Kube]

Originally Posted by v8fordman

With respect, I disagree with your statement. 4” shock links were introduced on the 1937 Ford (NOT the ‘40) for the front only. The 4” link carries part number 78-18055 A1 or A2. This was carried through 1939 on the front as well, with the only possible change being an early ‘39 introduction of the Marsden nut for attaching a changed shorter stud on the link versus the 5/16 fine thread and a lock washer attaching hardware on the earlier longer link. This is all documented in both the ‘37 and ‘38/9 books.

If you believe the Green Book, the “Shock Absorber Link Chart” on page 325 indicates 3” shock links (48-18055) on both the front and rear (NOT a 4”) on 1940 Fords with a 4” link being used on 60hp cars.

With respect to the authors of those restoration books, the documentation you site is flawed.
And perhaps the most glaring; no serious restorer uses the "green bible" for anything but a "loose" reference. The parts therein were intended for service with little to absolutely zero concern of authenticity.
When I was researching for the "It's Ford for '40" book, I relied mostly on drawings and service letters. Mostly.
The 4" link was placed into service as there was an interference created with the addition of the "new" sway bar in 1940.
Hey Terry B. you have always had a great insight to the front chassis on these cars. What say you?
In the meantime, I am going to dig deeper. I have been wrong before.

[Zeke3]

The reprint of the Chassis Parts List dated June, 1937 lists the absorber links for 1937 models: 73, 74, 77 and 78 as follows (front) 78-18055 and (rear) 48-18055-A. It also shows that 1935-36 models used the 48-18055-A both front and rear.

[v8fordman]

Using the Green Book is not what I use as well. Notice I said “if you believe the Green Book”….meaning you can take it or leave it.

Therefore, I would venture to say that it is author of the ‘40 book who’s research is flawed. Researching for these books is hard enough and mistakes are made. When I did the research for the ‘37 Book, I found the 78 part number shock link (which is 4”) was introduced in 1937 (actually in October ‘36). I also have torn down and looked at more ‘37 Fords than I care to remember and the long stud shock links happen to be one of the items I always looked for since service replacements used the thin Marsden nut. As a matter of fact, I can most likely get you the entire history of the part. I still have over 500 pages of research done by Gary Mallast when he proofread the ‘37 book and he was working on his ‘38/9 Book. I don’t think anyone can argue his ability to research the archives. (David Rehor, Don Rogers and him are the best, period). He would start with the introduction of the part and research it until it was obsoleted. I would also guess that Ford would not introduce a part in 1940, as suggested, and then retroactively assign a 1937 part number to it. I think Zeke hit the nail on the head (with his chassis parts book reference) Also, as the former Judging Standards Committee Chairman, I would deduct points if a ‘37 didn’t have 4” shock links on the front or have to be shown documentation that they were 3”… which I don’t think exists.

[s.e.charles]

Originally Posted by Kube

. . . The 4" link was placed into service as there was an interference created with the addition of the "new" sway bar in 1940.
. . .

i hope i'm not getting into hot water for asking the same question in two threads, but i did get the threads from a search.

in any event, would anyone happen to have a link or picture of this from underneath?

i've seen isometric drawings and top 45 degree photos, but i am not clear how the sway bar ends connect to the axle. dogbones, too?

thanks

sid

[Leadfoot4U]

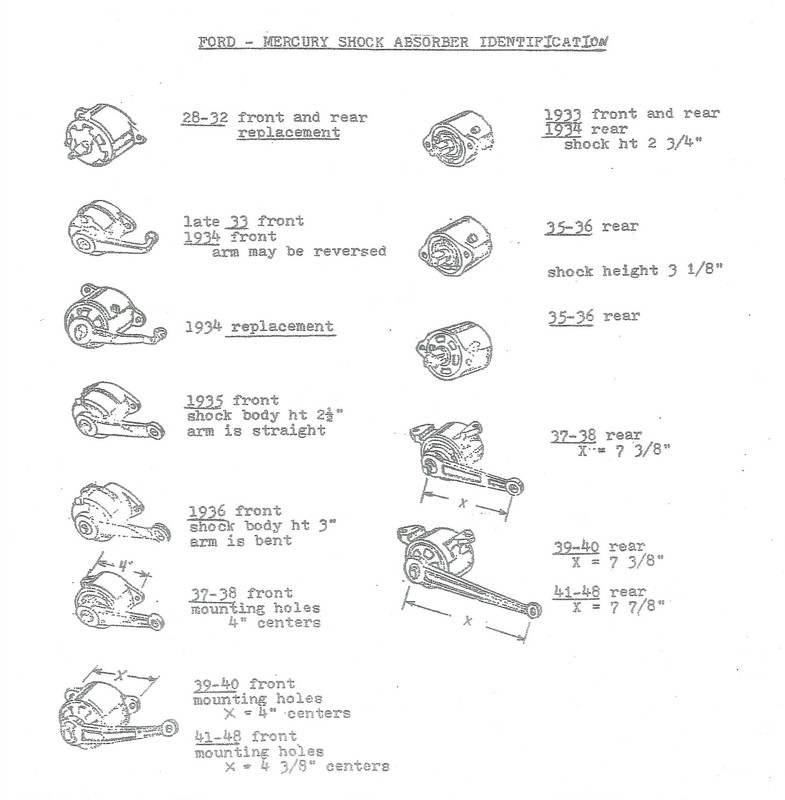

I have this image from a repair web site describing the differences in the Ford shocks (so long ago, I don't remember who?).

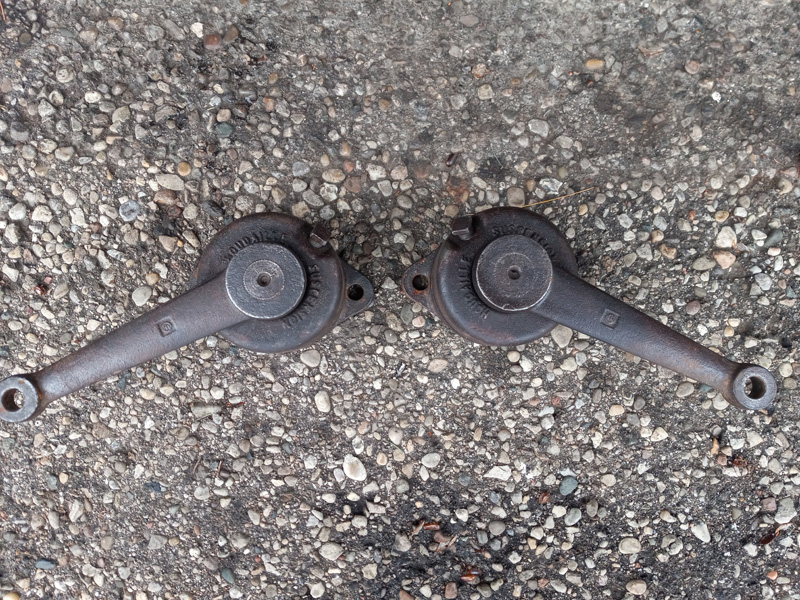

These are a set of front shocks which I believe are 35 Fords:

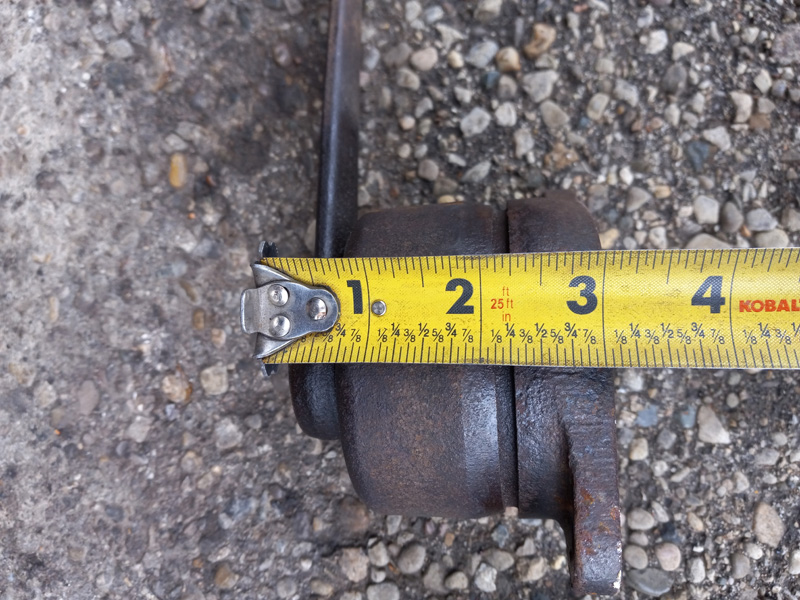

The above description states a 35 has a body height of 2 1/2". These do too:



The arms are pressed on starting in 35...much like these.

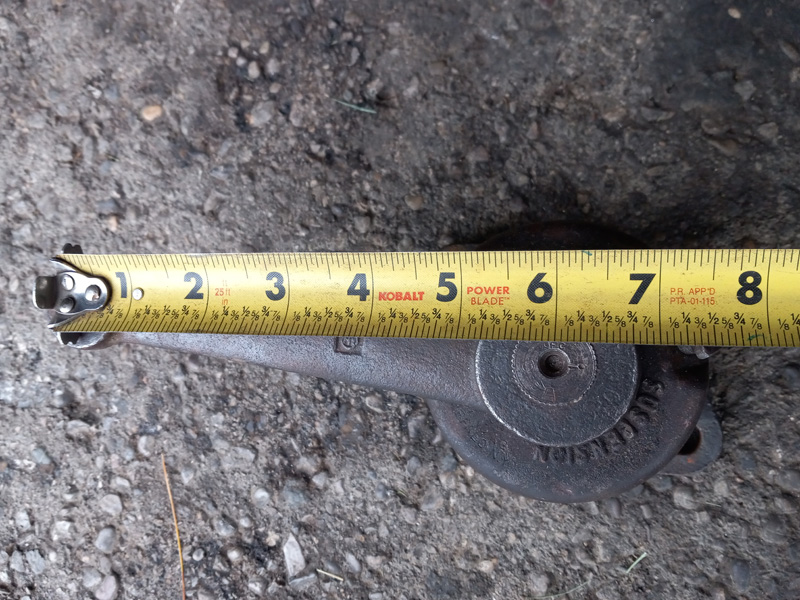

The length of the arms are 6 inches, center hole to center shock:



So to answer some of your Questions John, I believe a 35 front shock arm is 6 inches in length....center hole to center hole.

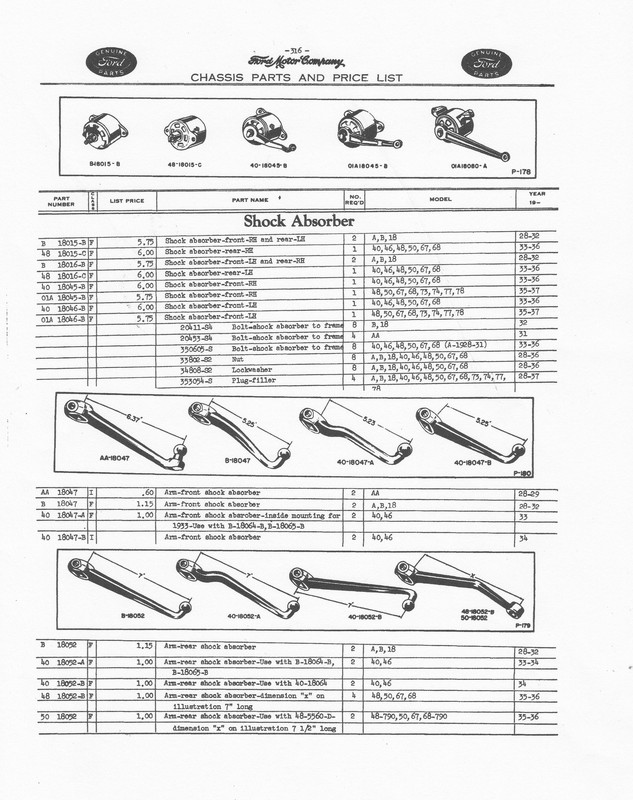

The following image from one of the Ford Chassis Parts Books only covers up to the 34 front shock arm being 5.25 inches long center hole to center hole.



Information beyond this covering up to your original 1939 year is out of my capabilities.

[38 coupe]

Attached is the Houdaille information I have from a 1940 export catalog. I cannot verify this is 100% correct for all 28-40 Fords, but it is a starting place.

[Leadfoot4U]

Thanks 38 Coupe for the Houdaille Repair information, very interesting! I'll admit I didn't read this original message date until posting.....July 2023!?. A little long in the tooth, but still important info just the same.

[s.e.charles]

agreed. all information is new (knew?) if you have not been exposed to it.

thanks
