1941 1948 ford and MERCURY CONVERTIBLE window regulator repairs

[sawzall]

a few years ago, I reproduced some of the rear window regulator gears (for 1946 - 1948 ford convertible..


At that same time I also began the process of reproducing a repair part for the front window regulator..

Unfortunately these were never 100% completed, partly due to development cost concerns.. and honestly, because I had other more pressing projects waiting..

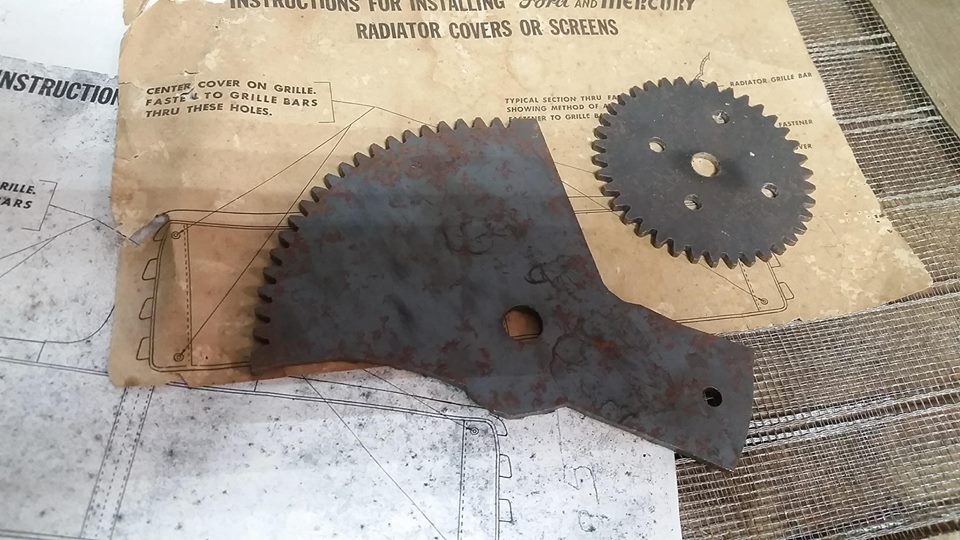

The photo above shows what I have available.

I still have SOME rear quarter window regulator gears available.. their installation is simple.. drill out two rivets.. install 2 new rivets and you have a functioning quarter window again..



Because I never had these FRONT gears stamped to the correct shape, they would need to be cut and welded into your existing gear, which might just be a better idea anyway..
(for those familiar with these convertible.. TYPICALLY a non functioning window regulator is the result of one of these two gears stripping. )
I still have some rear gear repair parts available as well. pm with needs.
