Masot · 03-18-2025, 03:39 PM

Hi guys.

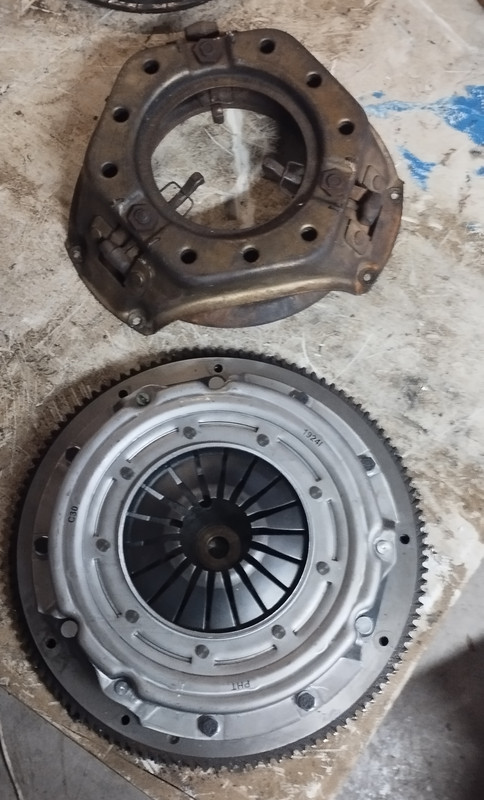

This is my adaptation for a diaphragm clutch. before 11" now 10"

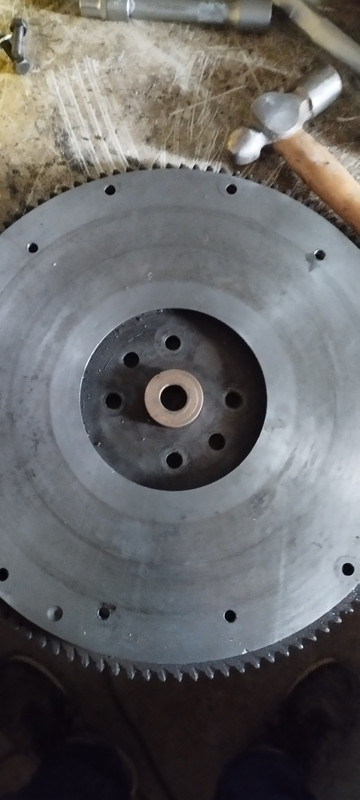

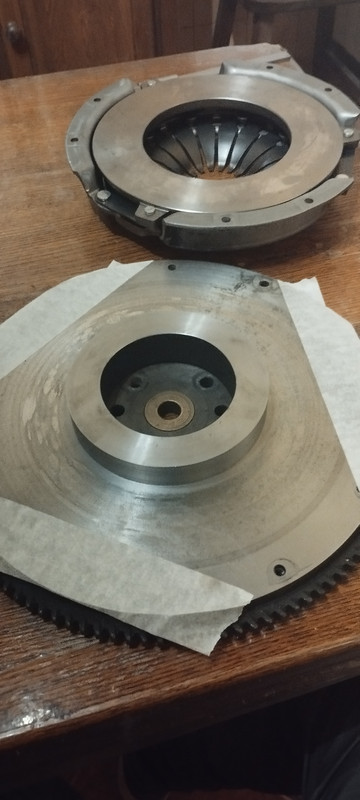

I made an adapter to center the diaphragm.

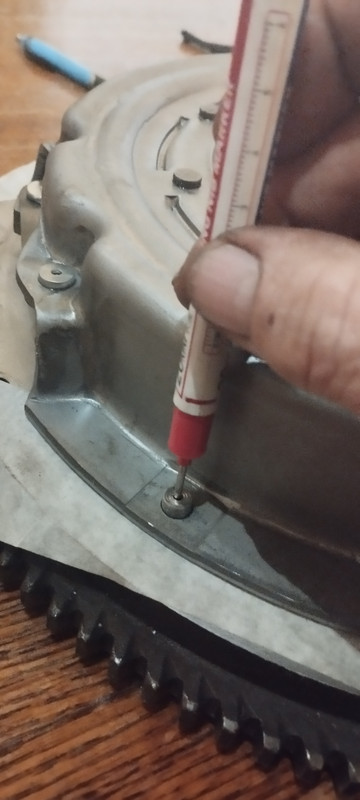

centering device for screw holes

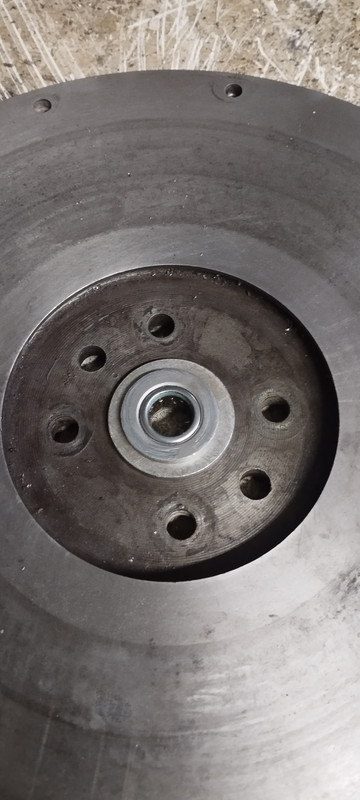

change of centering by bearing

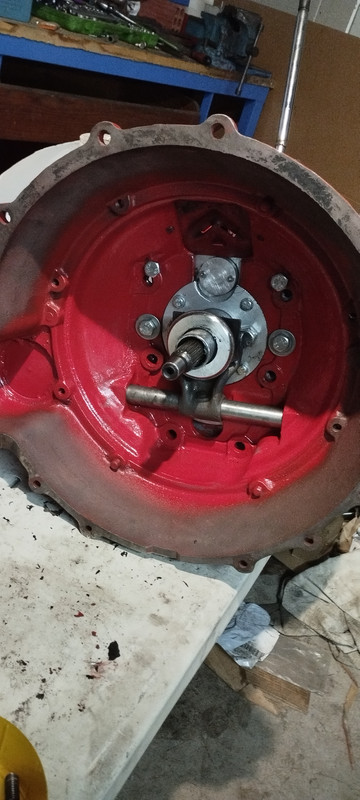

new thrust bearing

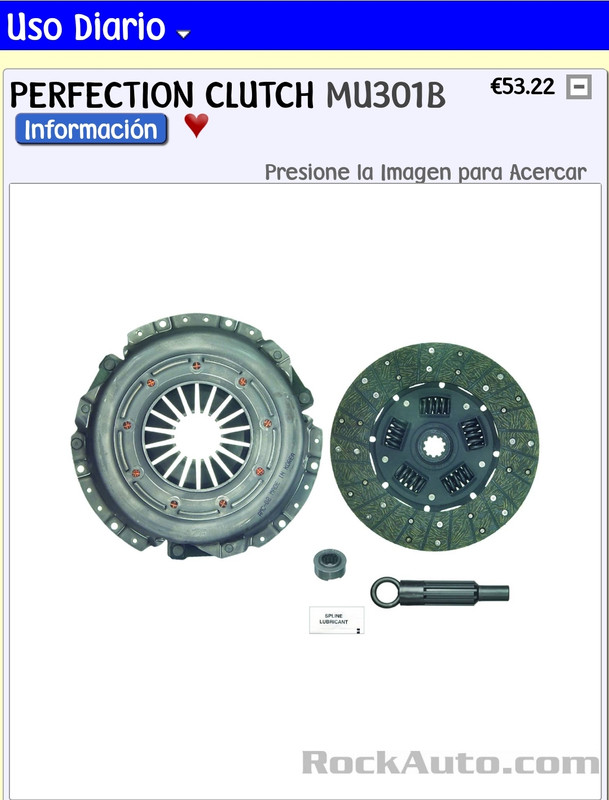

Kit

bearing SKF N1444SA

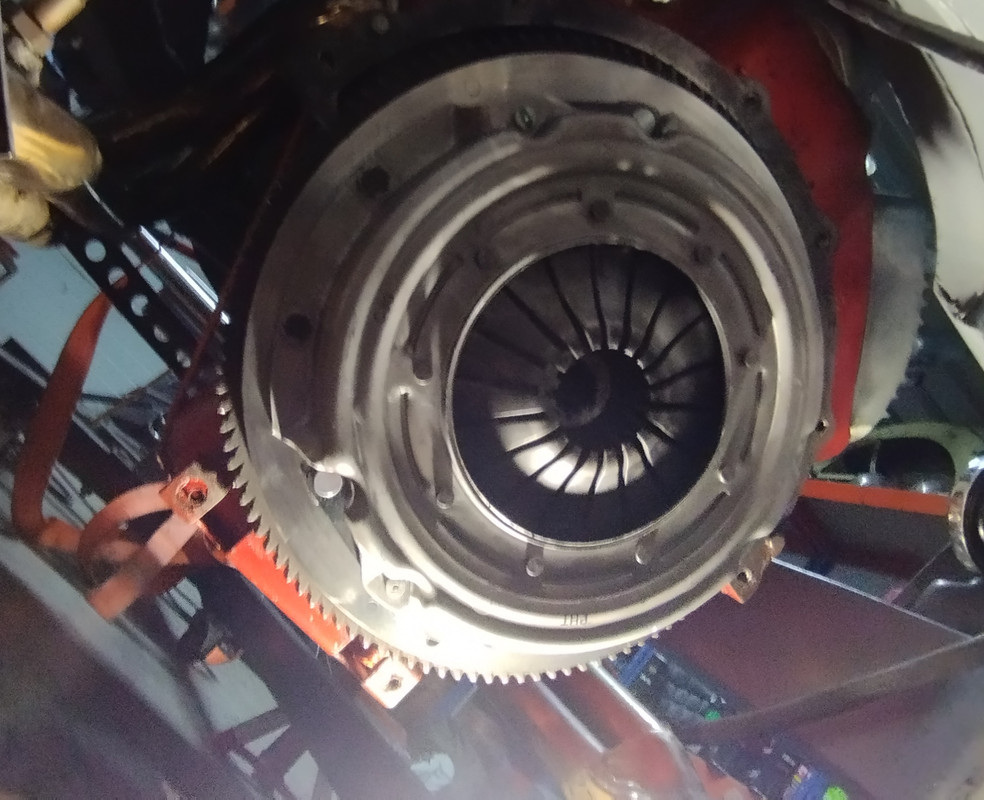

I have driven and run well

Bullerman · 03-18-2025, 08:02 PM

Looks nice. I am having clutch trouble myself and don't know what to do. I had the pressure plate( original three finger style from Shoe Box Central) clutch disk, throw out bearing and pilot bearing. This is on a 50 model. I had bad clutch shudder before and after having everything replaced. Wish I would have bought. Billett flywheel and diaphragm pressure plate.
Looks nice what you made.

tetanus · 03-19-2025, 09:14 AM

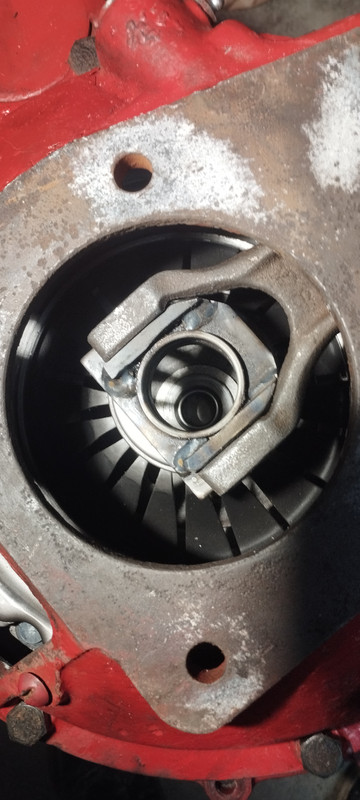

whats going on with that throwout bearing and clutch fork?

alchemy · 03-19-2025, 09:41 AM

What is the purpose of the new throwout bearing guide? Did you need a different bearing, or a different offset?

Bored&Stroked · 03-19-2025, 10:12 AM

Did you have the PP and flywheel balanced afterwards? I would sure recommend it.

Tim Brown · 03-19-2025, 10:40 AM

Sponsored Links (Register now to hide all advertisements)

What transmission is that?

GB SISSON · 03-19-2025, 01:36 PM

Gotta love the adaptability of the Ford hogshead.

slowforty · 03-20-2025, 03:45 PM

What is the advantage of a diaphragm clutch. I have an 11 inch Clutch in my 40 with no issues. Are the majority of V-8 owners short ,98 lb people.

Ron_r1959 · 03-25-2025, 06:11 AM

a 11" centrifugal/ original type clutch is fine as long as you don't try and drag with it lol, they have a nasty tendency to not want to release at RPMs above 4000, it can get hard on the tranny. That would be one reason I could think of.

Bored&Stroked · 03-25-2025, 08:07 AM

Diaphragm clutches tend to take less pedal pressure to actuate than long clutches. This is especially true in higher performance applications running at higher RPMs.
